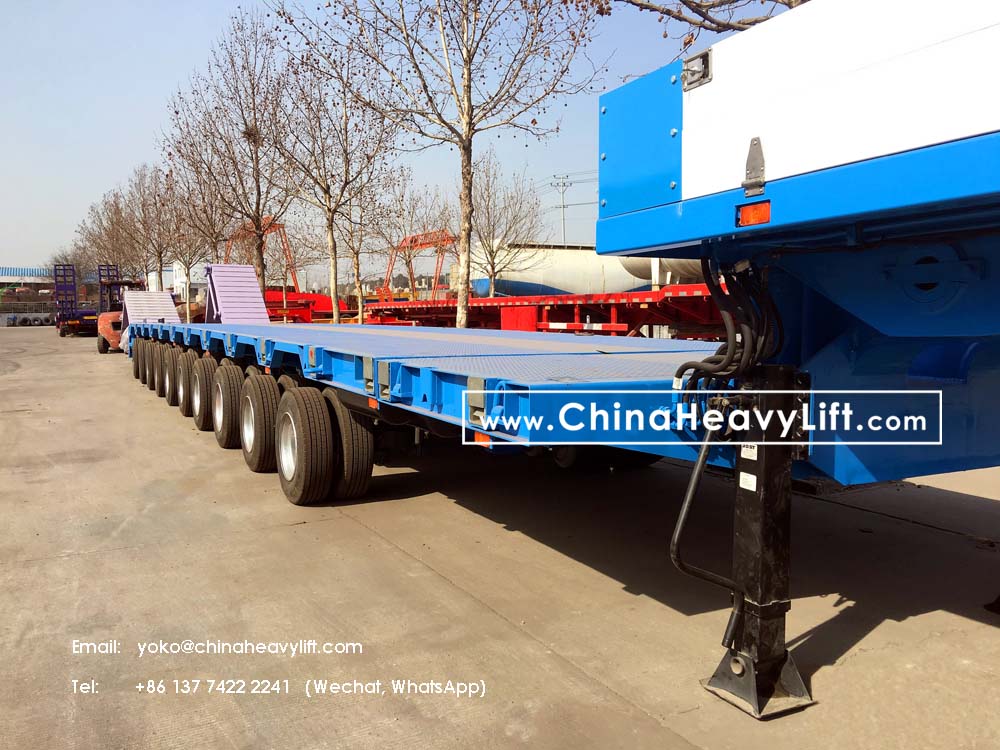

Semi Trailers (Hydraulic, Extendable)

CHINA HEAVY LIFT manufacture 6-10 axle Hydraulic Extendable semi-trailers handle payloads of up to 150ton, max length over 32m, and still remain highly maneuverable and flexible for construction site operations and long-distance haulage alike.

Chinaheavylift 10 axle Hydraulic Extendable semi-trailers is our flagship in terms of load securing, maneuverability and ground clearance. The range includes configurations with six to ten axle lines. The outstanding stability of the frame ensures that loads can be moved quickly and easily. The swing axle knowhow gained with our modular trailers has been integrated in this semi-trailer range. From construction components and machines to industrial plants, you make light work of the heaviest loads with the right equipment.

• Optional 6 to 10 axles, extendable to over 32m length
• 400 mm Hydraulic suspension stroke for optimum compensation of uneven road surfaces
• Unrivaled maneuverability with 40° hydraulic steering angle
• S690 high tensile steel, robust ball-bearing race ring technology
• Hydraulic gooseneck with double articulation to match 5th wheel load and height and swing radius
• Excellent stability and tracking performance thanks to automatic adjustment to the road surface
• Separate control of hydraulic axle leveling left, right, front and rear
• Long vehicles with joint after second or third axle for optimized center of gravity

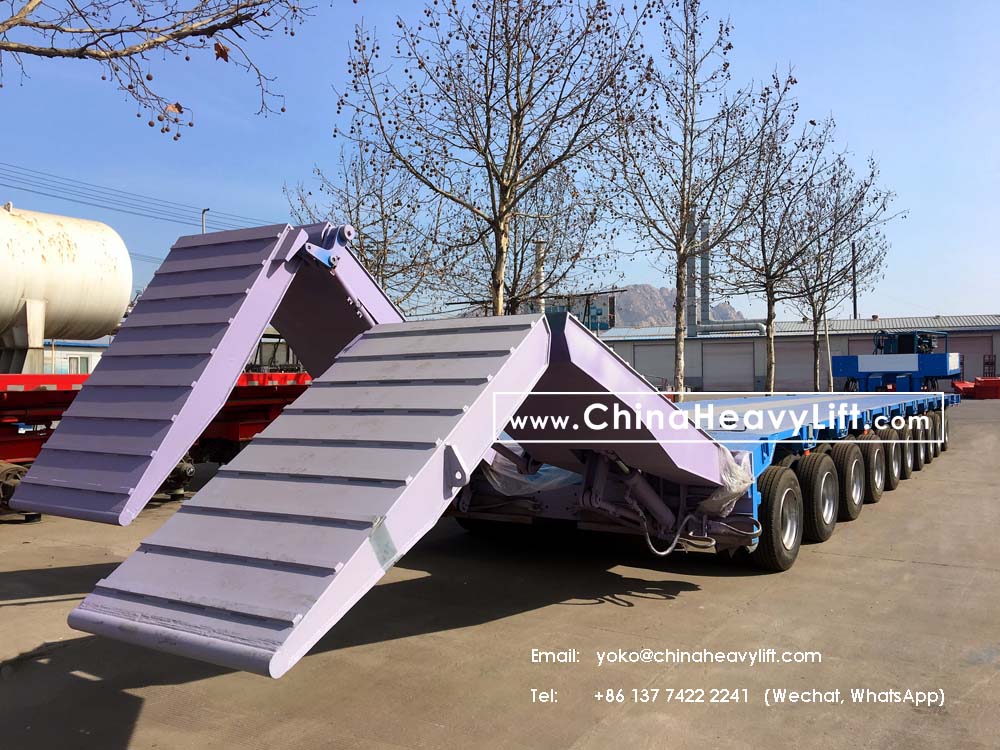

• Optional Hydraulic ramps for Crawler equipment like Excavator
• Side walls and various stowage box on gooseneck and under deck
